Loading, cutting, grinding, marking and breakout table intended for the wider range of applications.
Designed for glassmakers who want to evolve their business by adopting automated and flexible cutting systems, BKM tables offer all the quality and simple use that is typical in Bottero products. Thanks to the shared single development platform, common to all cutting systems, BKM tables use technological solutions and components that are also adopted on top of the range Bottero systems, thereby ensuring uncompromising performance and reliability.
BKM cutting systems can make linear cuts and shapes on sheets with a thickness of up to 19 mm, thereby offering the possibility of making small and medium productions in series and particular pieces.

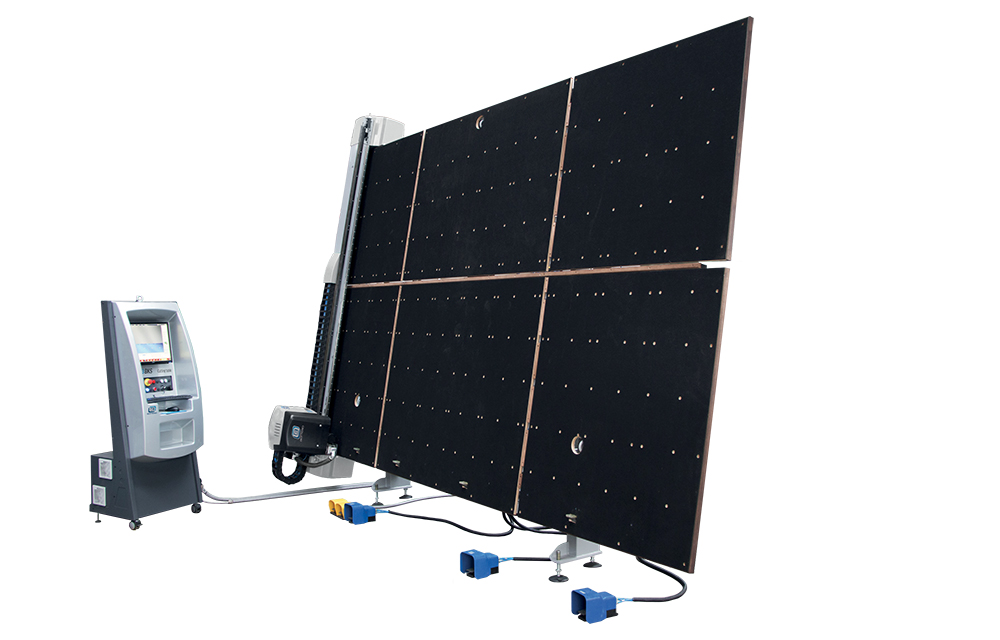

The BKM cutting systems are available both in the standalone version, for loading, cutting and breakout of the material on the panel, and in the fixed structure version for high productivity in-line integration. All models can be equipped with a wide range of accessories.
Each constructive and functional features of the BKM range is designed to ensure extreme processing precision and maximum productivity, at the service of each specific production requirement.
Steel cutting bridge placed crosswise to the machine for maximum solidity and resistance to torsion.
Double brushless motor with gantry transmission.
High precision and low noise carriage linear sliding guides, ground and installed on machined surface.

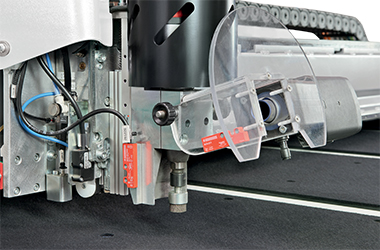

Carriage and cutting head
Motorised cutting head, formed by an aluminium alloy body and rod with cutting tool or plastic cut. Automatic glass thickness measurement by linear encoder and consequent automatic loading of the cutting parameters preset in the software. Cutting pressure adjusted by means of proportional solenoid valve and glass surface compensation system.

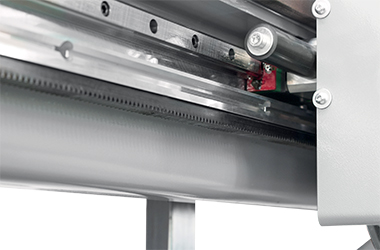

High precision and low noise bridge sliding guides, ground and installed on machined bed, ensuring a perfectly straight cut without the need for adjustment.
Ground racks, ensuring maximum positioning and cutting precision, and facing down to prevent the accumulation of dirt.
Components made of highly durable and minimal wear materials, ensuring optimal performance over time. Easily accessible components, ensuring immediate and fast maintenance.
Maximum bridge speed
Maximum carriage speed
Maximum grinding speed with Easy deletion
Cutting accuracy on straight processes
± 0.15 mm
Thicknesses which can be cut
2 ÷ 19 mm
930 ± 40 mm

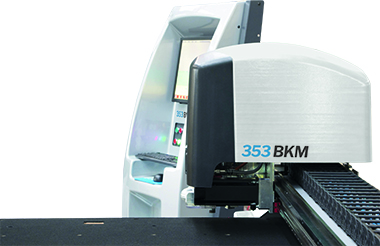

353 BKM Regular
5250 x 2905 mm
Maximum dimension of processable sheet
3810 x 2750 mm
