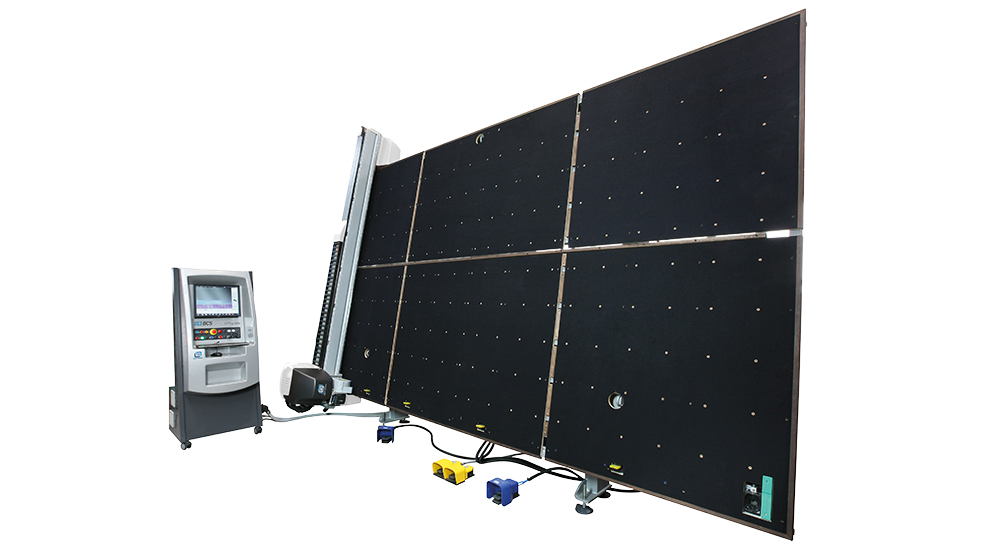

Loading, cutting, grinding, marking and breakout table intended for the wider range of applications. The 353 BCS cutting table is available in the two fixed and tilting versions and is complete with air cushion with quick closing, automatic selection of cutting pressures, Shape Scanner + Scan Cad, optimiser on the machine and BCMS Windows.
BCS cutting tables are designed to withstand the high workloads typically adopted during single- or even multiple-shift production of windows or panels in the furniture sector, as well as of components for household appliances, in the automotive industry and in many other areas. BCS cutting tables are among the most popular and sought-after in the world, and in the market they represent a major benchmark in terms of production capacity and reliability.
The high quality standard of the BCS range is particularly noticeable in the care for details: each component is carefully studied and designed to offer performance measuring up to the most demanding requirements, making the machine even safer and more performing.
The BCS range stands out due to its modularity and versatility, thanks to which the float cutting tables can be totally configured according to specific customer requirements: from stand-alone cutting tables intended for small productions, up to intensive high automation level production systems, fully integrated with Low-E grinding devices and marking, and loading and breakout modules
With the aim of meeting all production needs, the BS cutting tables allow also fitting the cutting carriage with one of the various accessories available. Each constructive and functional features of the BCS range is designed to ensure extreme processing precision and maximum productivity, at the service of each specific production requirement.
Steel cutting bridge placed crosswise to the machine for maximum solidity and resistance to torsion.
Single brushless motor with pinion motor belt transmission.
Torque shaft for the accurate and balanced motion transmission along the bridge.
High precision and low noise carriage linear sliding guides, ground and installed on machined surface.
Carriage and cutting head
Motorised cutting head, formed by an aluminium alloy body and rod with cutting tool or plastic cut. Automatic glass thickness measurement by linear encoder and consequent automatic loading of the cutting parameters preset in the software. Cutting pressure adjusted by means of proportional solenoid valve and glass surface compensation system.
Glass presence detector and end element of the rod with controlled breakage, easily replaceable, to avoid mechanical stresses on the carriage and bridge in case of collision.
Aluminium carriage with control and management electronics of the on-board head, complete with optical sensor able to perform the electronic squaring of the sheet and automatically acquire a shape thanks to the Shape Scanner system.
High precision and low noise bridge sliding guides, ground and installed on machined bed, ensuring a perfectly straight cut without the need for adjustment.
Components made of highly durable and minimal wear materials, ensuring optimal performance over time.
Ground racks, ensuring maximum positioning and cutting precision, and facing down to prevent the accumulation of dirt.
Easily accessible components, ensuring immediate and fast maintenance.
Maximum bridge speed
Maximum carriage speed (*)
Maximum grinding speed with Easy deletion
Maximum grinding speed with LMT
(*) the maximum carriage speed is 160 m/min in the presence of LMT, PPL or LAM Shape set-ups.
Cutting accuracy on straight processes
± 0.15 mm
Thicknesses which can be cut
2 ÷ 19 mm
19 ÷ 25 mm 0,4 ÷ 2 mm
930 ± 40 mm
353 BCS Regular
5390 x 4460 mm
Maximum dimension of processable sheet
4600 x 3355 mm
353 BCS Jumbo
7125 x 4191 mm
Maximum dimension of processable sheet
6100 x 3355 mm
