Variant is the range of Bottero variable angle Straight Line Edgers. The 8 models available within this range of machines allow working the flat edge of an angle varying up to 45° and removing the arris.

Main qualities

Bottero’s vertical edge grinding and bevelling machines allow the highest quality results to be achieved when processing edges, thereby guaranteeing a perfect finish and allowing use in the most elegant applications, in which quality is considered an essential element. The vertical edgers and bevelling machines are designed to ensure maximum production and maximum reliability. The availability of numerous machine set-up configurations allows you to choose the right product for both simple and extremely advanced processing operations.

Bottero straight line edgers and bevellers are built on a heavy duty electro-welded steel frame. Anti-corrosive materials are extensively used throughout the machine, such as stainless steel and water resistant technical polymers.

The water tanks are manufactured from stainless steel. This gives them greater longevity compared to other materials. Their design makes them easy to clean.

All parts coming into contact with water are manufactured from stainless steel. This guarantees that the mechanical components enjoy the longest possible lifespan. Straight line edgers and bevellers are designed to cope with 24 hour running. The machine needs only be stopped when the operator requires a break.

Features

Because they guarantee quality

The heavy duty spindles eliminate any vibration that may affect the final product quality. The spindles are driven directly from the motor. This eliminates the need for drive belts and pulleys and drastically reduces the number of mechanical parts that may be subject to wear.

The water separator units are constructed from both brush and rubber sections. These prevent any grinding residues from crossing over into the cerium section of the machine, guaranteeing maximum finished product quality and gloss.

The in-feed conveyor belt system guarantees that the glass always enters the machine in a perfectly flat orientation. The in-feed drive can also be equipped with a pneumatic clutch to avoid any heavy belt wear.

Because they make sense

A glass thickness device mounted at the inlet of the main drive tracks prevents glass thicker than that for which the machine is set from entering the machine. This prevents damage occurring to the main tracking system

The pneumatic clutch is controlled by the glass thickness device. If glass of a greater thickness than the sliding blocks opening is detected, the clutch immediately disengages the track drive.

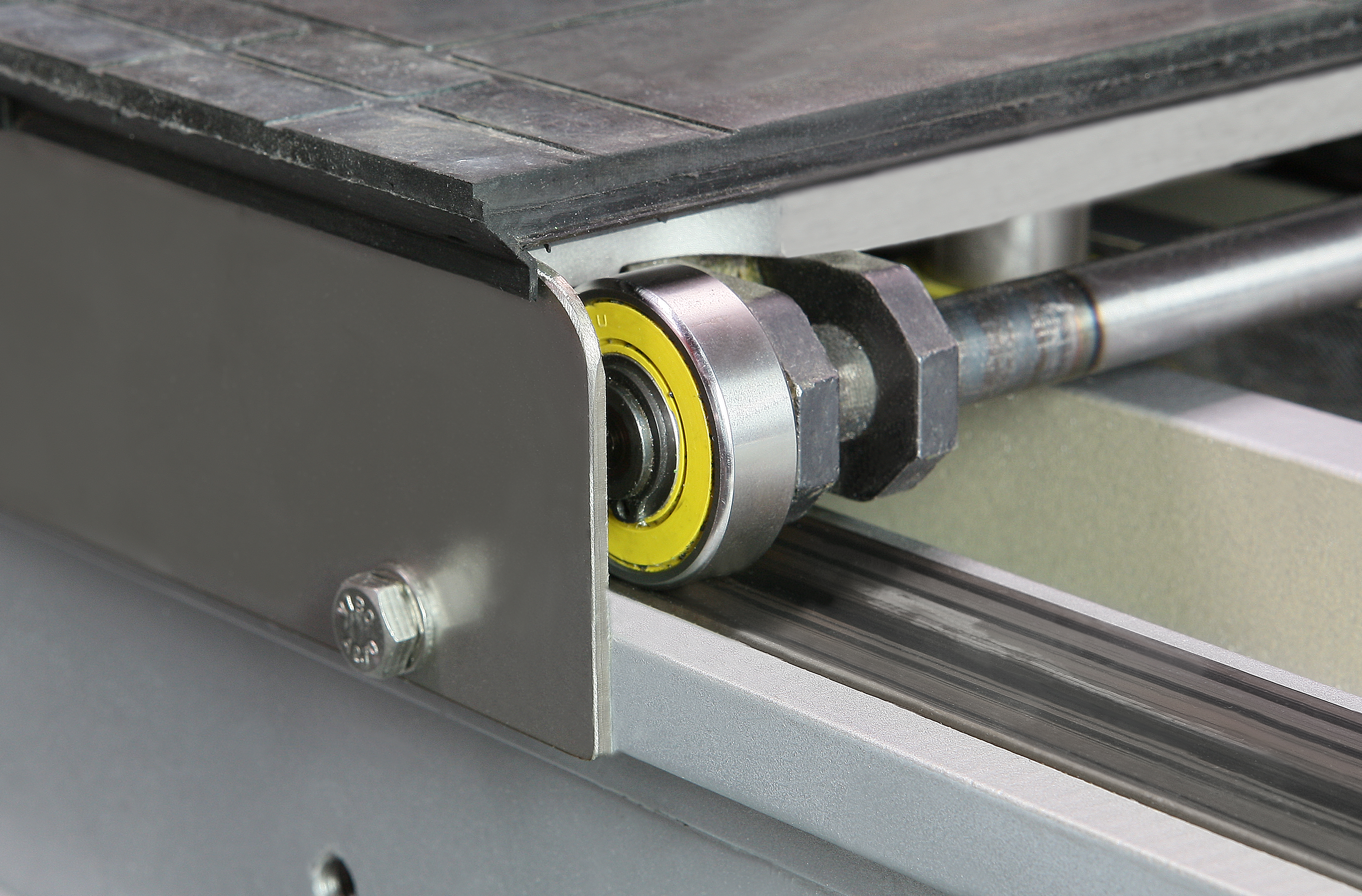

The sliding guides of the slide blocks are made of extremely hard alloy steel. This material allows the bearings, fully built in stainless steel, to slide perfectly and the system to last for a long time. The guides and bearings of the slide blocks are protected by a labyrinth seal system to prevent infiltration of the grinding water

Because they offer something extra

All Bottero grinding machines use the same spindles, proving the great reliability of our components. The use of high precision bearings and the presence of labyrinth seals guarantee “long life” for the spindle

Technical specifications

810 BC-BR

Metric

810 BC-BR

Minimum glass dim

100 x 100 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

27 KVA

Weight

4600 Kg

810 BCS-BRS

Metric

810 BCS-BRS

Minimum glass dim

40 x 40 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

27 KVA

Weight

4600 Kg

810 CD

Metric

810 CD

Minimum glass dim

100 x 100 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Working angle

0 ÷ 45°

Installed power

27 KVA

Weight

5200 Kg

810 CDS

Metric

810 CDS

Minimum glass dim

40 x 40 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

27 KVA

Weight

5200 Kg

814 BC-BR

Metric

814 BC-BR

Minimum glass dim

100 x 100 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

36 KVA

Weight

5200 Kg

814 BCS-BRS

Metric

814 BCS-BRS

Minimum glass dim

40 x 40 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

36 KVA

Weight

5200 Kg

815 BC-BR

Metric

815 BC-BR

Minimum glass dim

100 x 100 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Angolo di lavorazione

0 ÷ 45°

Installed power

38 KVA

Weight

5400 Kg

815 BCS-BRS

Metric

815 BCS-BRS

Minimum glass dim

40 x 40 mm

Glass thickness

3 ÷ 55 mm

Speed

0,4 ÷ 6 m/min

Processing angle

0 ÷ 45°

Installed power

38 KVA

Weight

5400 Kg
