Titan EVO

Titan EVO

The 10 configurations that make up the Titan EVO range enable the processing of flat edge, of threads and possibly the removal of the edge.

Main qualities

The Bottero range of double edgers for flat edge processing has been designed to meet all requirements of performance and quality.

The barcode reading system allows the Operator machine setting is extremely user friendly.

The automatic dubbing facility enables the finished pieces to be transferred immediately to the toughening process. The dubbed corners are also safer to handle.
The edge spindle can be pneumatic (standard model) or electro-pneumatic.

All machine axis are simultaneously executed, resulting in extremely efficient machine setup times being achieved.

Features

Why Choose Them?
Because of their high build quality

The Titan EVO and Flex-Edge edgers comprise of a sturdy electrowelded steel structure. Stainless steel and other anticorrosion materials such as technical polymers are extensively used.

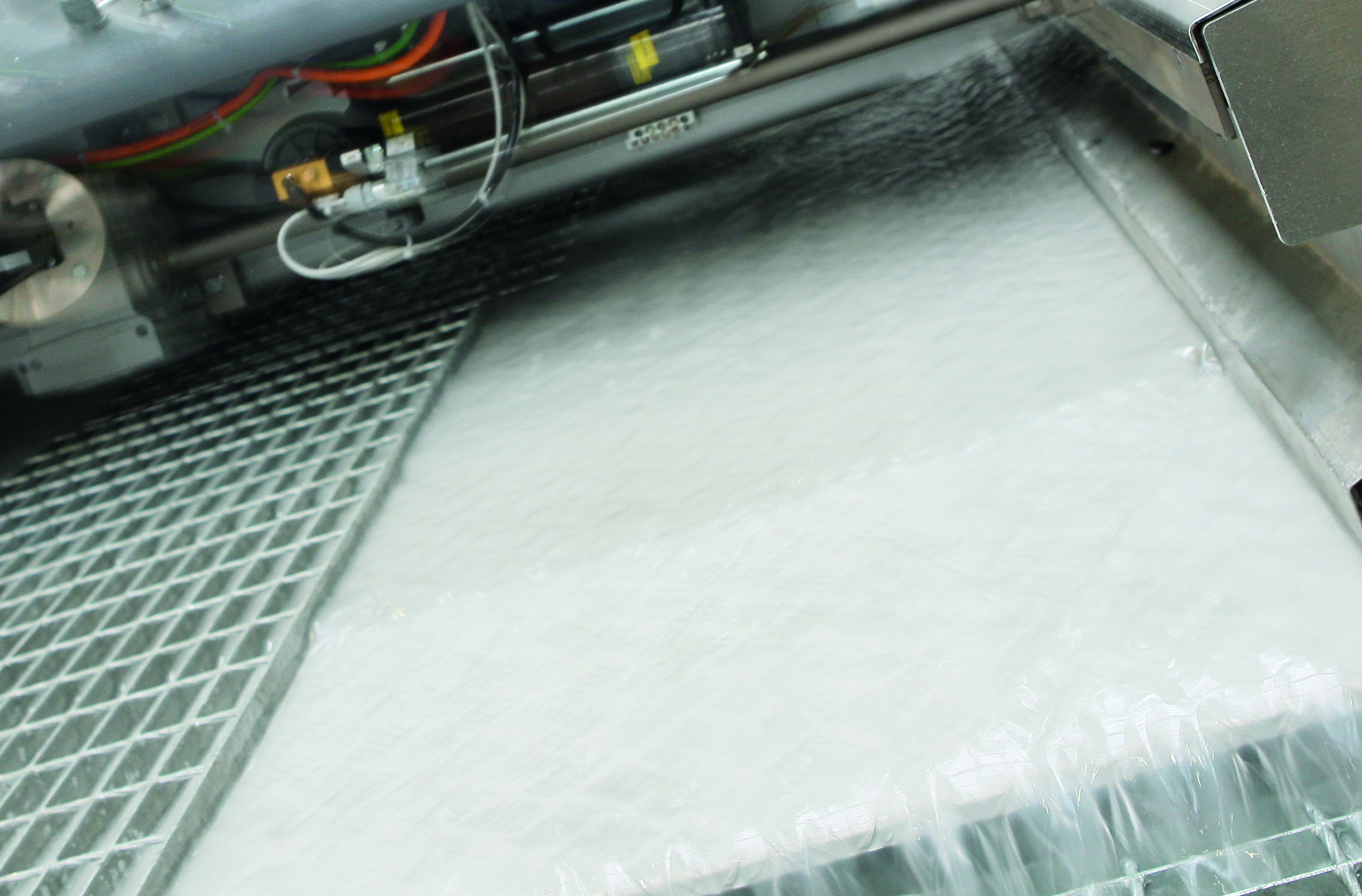

All components coming into contact with water are constructed from stainless steel. This in order that we are able to guarantee the durability of the components.

The choice of mechanical and electronic trade components by leading manufacturers ensures reliability and availability over time.

Why Choose Them?
Because they guarantee quality

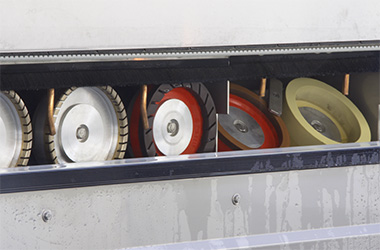

The coaxial spindles guarantee vibration-free operation and as a result maximum grinding efficiency. The absence of belts and pulleys reduces the number of parts subject to wear and replacement.

The belts are made in polyurethane with stainless steel inner cables and ground on the back and sides to ensure high precision of glass advancement. The width of the belts is modular, depending on the type and weight of the glass to be conveyed. The large-sized pulleys enable the specific load to be divided when working with heavy glass. This means longer lifespan for the belts.

Technical specifications

214 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. power

45,2 KW

216 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

52 KW

218 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. power

57,8 KW

220 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

64,6 KW

222 D

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

71,4 KW

222 L

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

71,4 KW

224 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

78,2 KW

226 D

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

81,8 KW

226 L

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

81,8 KW

228 N

-

Metric

Min. glass dimension

230 x 230 mm

Glass thickness

3 ÷ 30 mm

Speed

1 ÷ 20 m/min
(1 ÷ 30 m/min opt.)

Min. Power

88,6 KW
