- Available from 2 to 20 sections configuration
- Blow & Blow, Press & Blow and NNPB process
- Variable equipment and accessories to cover any production range for single, double and triple gob
- Servo mechanisms available as option
- Advanced forming technology through proportional valves
- Engineering team available to discuss tailored solutions
- Consulting and advisor service for glass containers and special projects
Forming Machine
E-IS / IS MACHINE
E-IS Machine
- Available from 2 to 20 sections configuration
- Blow & Blow, Press & Blow and NNPB processes
- Variable equipment and accessories to cover any production range for single, double and triple gob
- Servo mechanisms available as option
- E-MOC mechanism is mounted on the top of the section frame
- E-MOC is available in all traditional center distances as well as the newly developed TG 3-1/2”

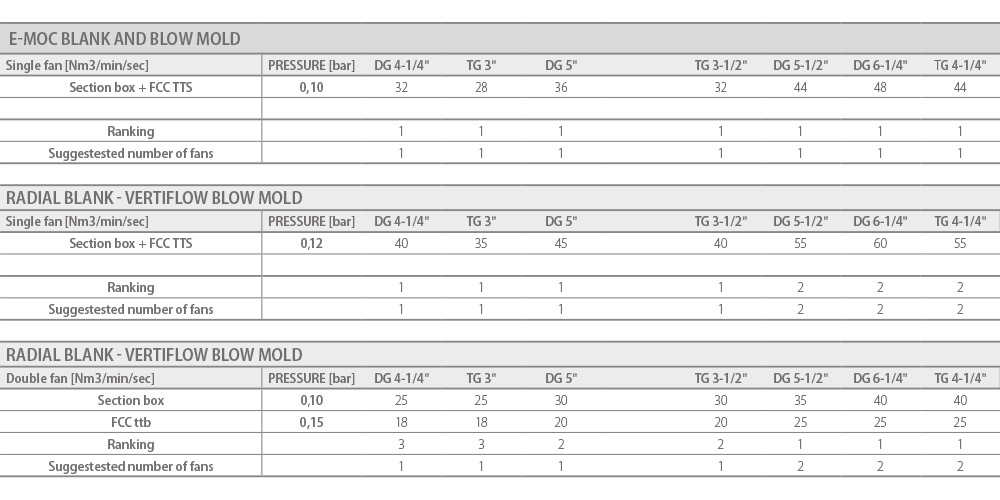

- The cooling air with E-MOC improves the temperature balance between each half of the mould
- The pantograph E-MOC movement is designed to grant smooth mould movement thus reduceing wear and damage to the equipment
- Advanced forming technology through proportional valves
- Engineering team available to discuss tailored solutions
- Consulting and advisor service for glass containers and special projects.

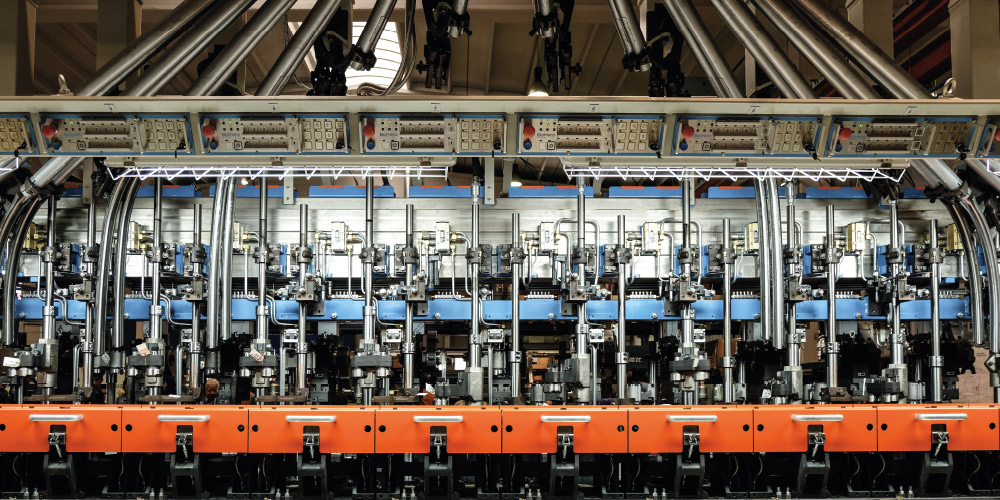

IS Machine
The IS machine can be configured in many different ways according to production requirement as well as users’ preference. Therefore pneumatic mechanisms can be flexibly mixed with servo mechanisms and proportional valves can be used to fine control the most delicate steps of the forming process.
Available from 2 to 20 sections configuration
Blow & Blow, Press & Blow and NNPB processes

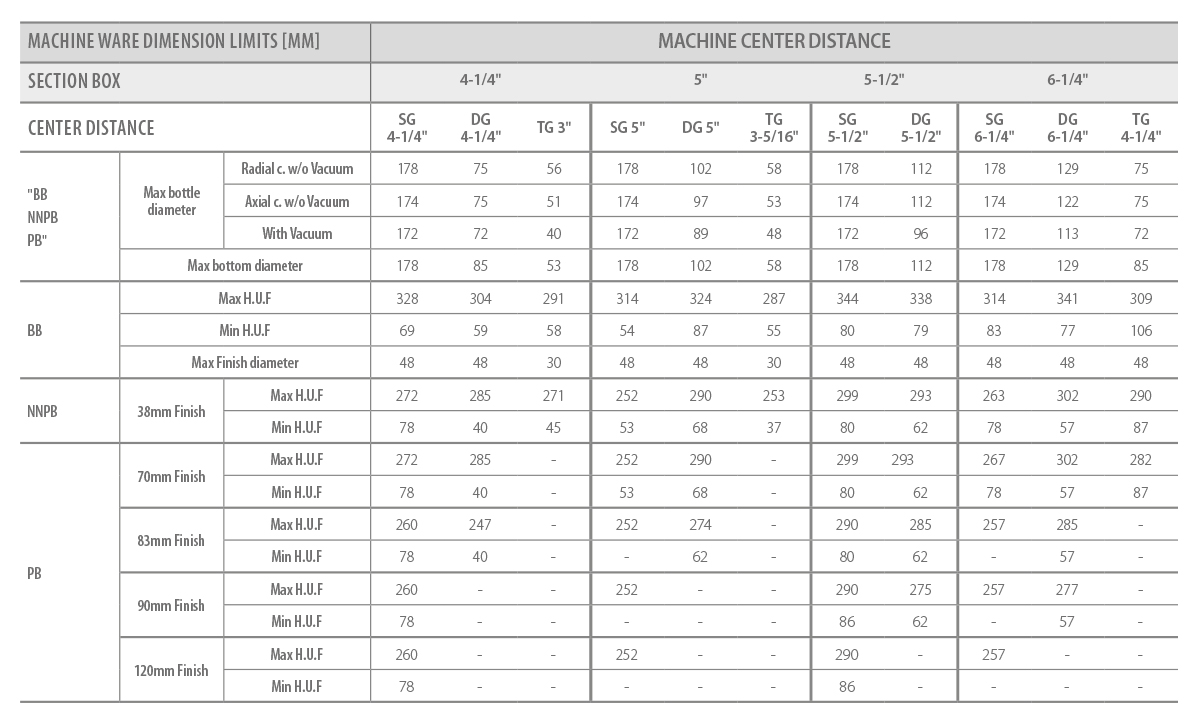

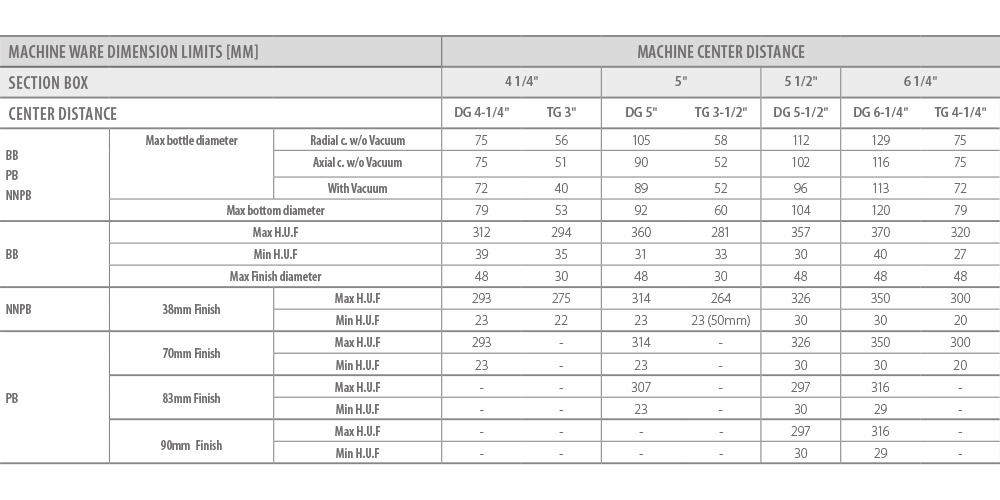

Machine center distances: 3" TG, 3-5/16" TG, 4-1/4" DG and TG, 5" DG, 5-1/2" DG, 6-1/4" DG
Variable equipment and accessories to cover any production range for single, double and triple gob
Servo mechanisms available as option
Proportional valves can be used to fine control the desired steps of the production process
Engineering team available to discuss tailored solutions
