- “Selective job change” with fully independent section structure: possibility to run different processes.
- Fully flexible event setting and special cycle configuration
- Section control units can be customized according to specific requirements
- All events can be manually operated
- The firing order can be adjusted to suit the operating conditions.
Control system
With E-pack 700 series Bottero strengthens its position as leading supplier of electronic control systems, setting new standards in hot-end production lines. ‘Intelligent’ diagnostic and modularity are the key features of the 700 E-Pack.
700 Electronic forming control module

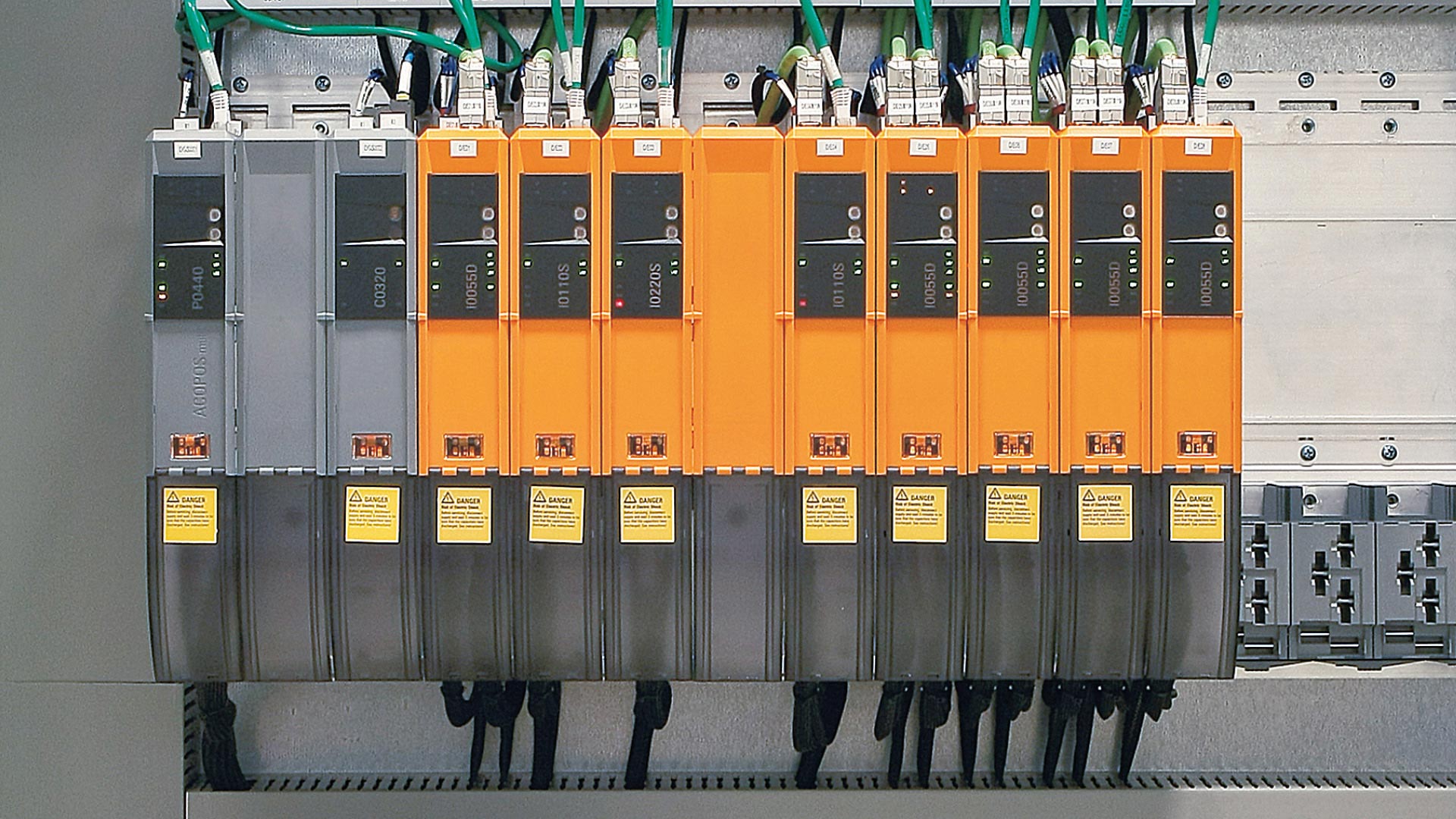

700 Flexible motor control module
- The phasing on all drive motors is automatically configured, even after motors re-start
- The design of the motors ensures maximum flexibility for the changes in parameters during production
- Digital motor speed control with wide adjustment range and no need of replacement of mechanical parts
Open Supervisory Platform
- Revolving Tube Control
- Tube Height Driven
- Servo plunger
- Servo parallel shear
- Servo Gob Distributor
- Main Conveyor
- Up and down conveyor
- Ware Transfer
- Cross conveyor
- Stacker
Or:
- Mechanical Stacker
- Mechanical Feeder
- Mechanical Gob distributor
- Others

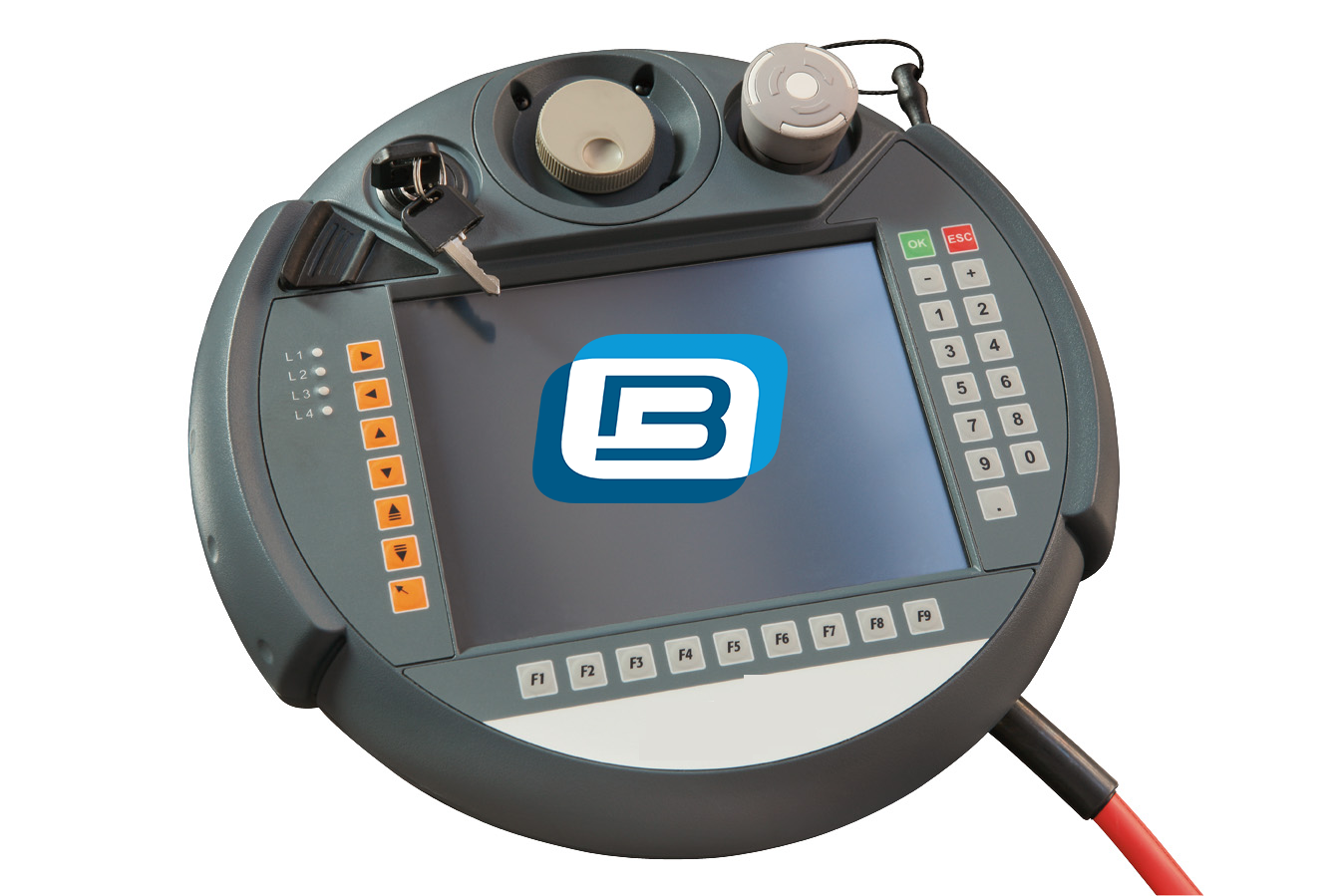

Mobile Interface Panel 700
- All machines parameters are visible and editable from any plug-in point
- User friendly menu grants easy surfing through the parameters (all SPV data are available)
- Multilingual functions are available: (Chinese, Japanese, Farsi, Thai, Turkish, Russian).
- Full screen and easy diagnostic is available on mobile panel.
