The E-Moc Technology

The E-MOC is an enhanced open and close mechanism born from glass plants experience. It's the key to simplify the forming process. A process oriented cooling system tailored on customer needs. The reading will introduce to E-MOC main features and production advantages.

Conjugate heat transfer analysis: cooling specifications, mold temperature, thermal transfer and glass behaviour are all inside the simulation.

E-Moc is Bottero solution for cooling capability following market needs...

E-MOC is the most advanced heat exchange device. Airflow cooling rate can be divided in the following areas.



E-MOC cooling system

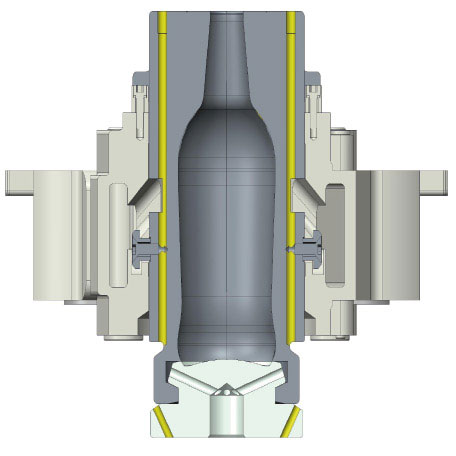

Blow mold

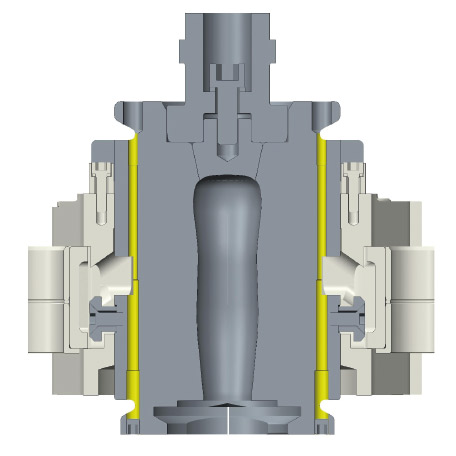

Blank mold

What's the cooling technology?

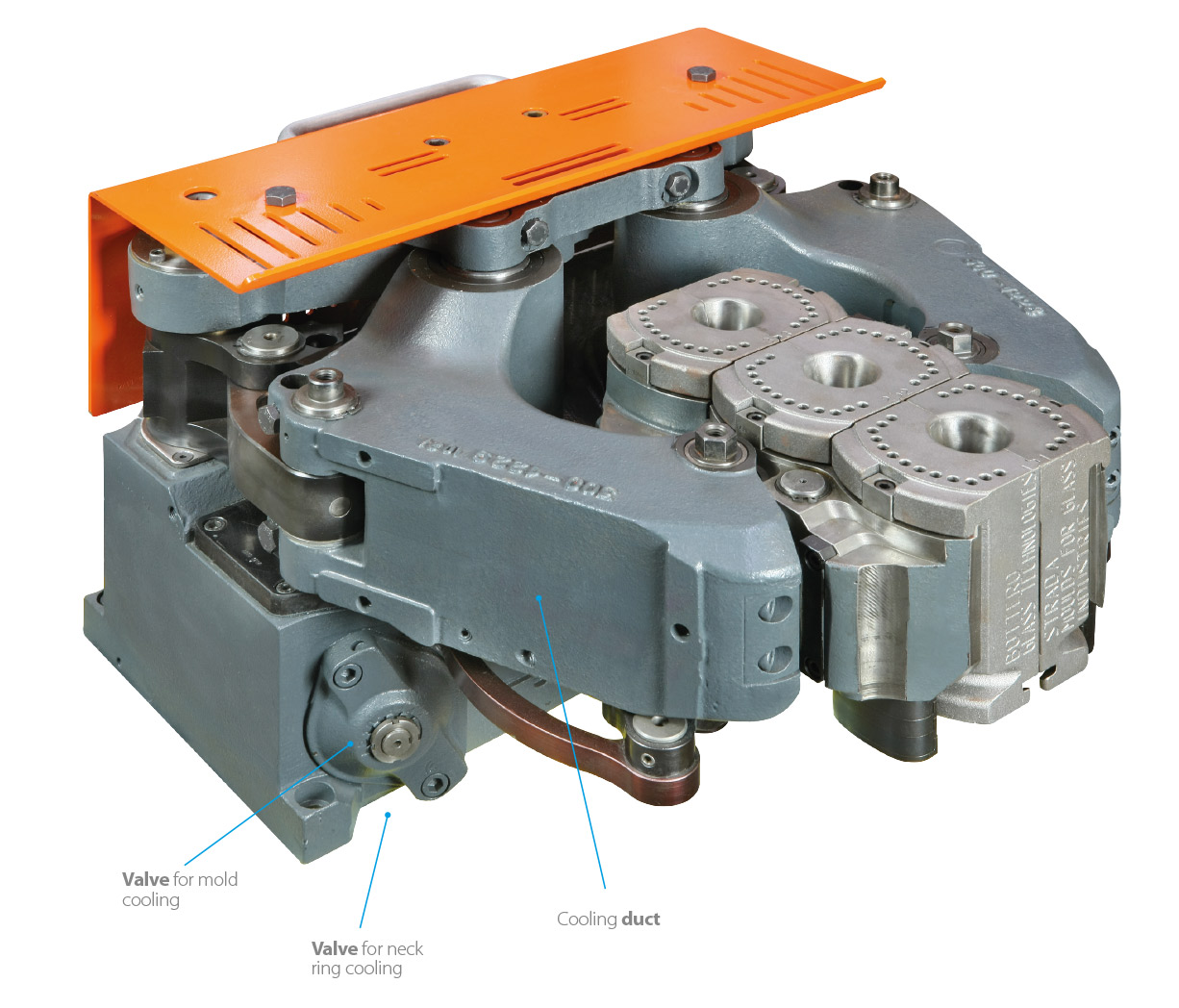

Blank mechanism
Blow mechanism

What about E-Moc mechanism?

Levers and parallel motion

  • Mold Life time increase
  • Easier swabbing
  • More Efficient draft angle

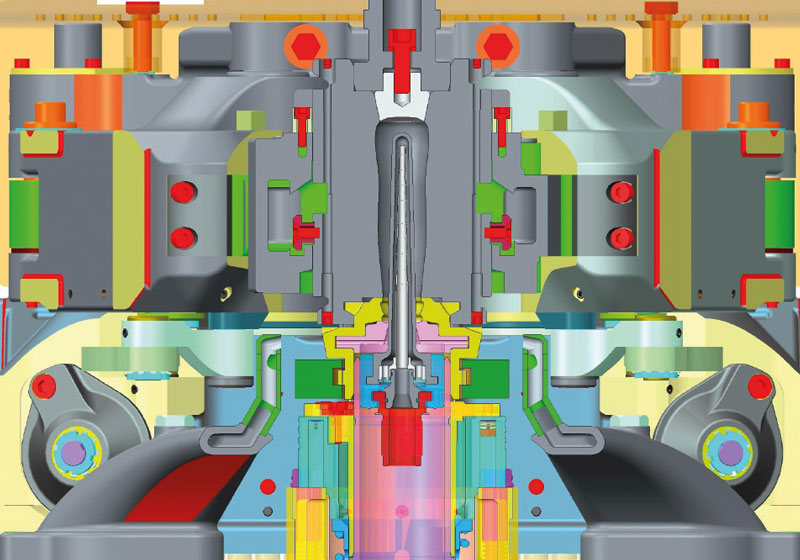

Designed with structural simulations

  • Higher Clamping Force
  • Smooth o/c movement
  • More Efficient clamping

Job change with E-MOC is

  • Faster
  • Easier

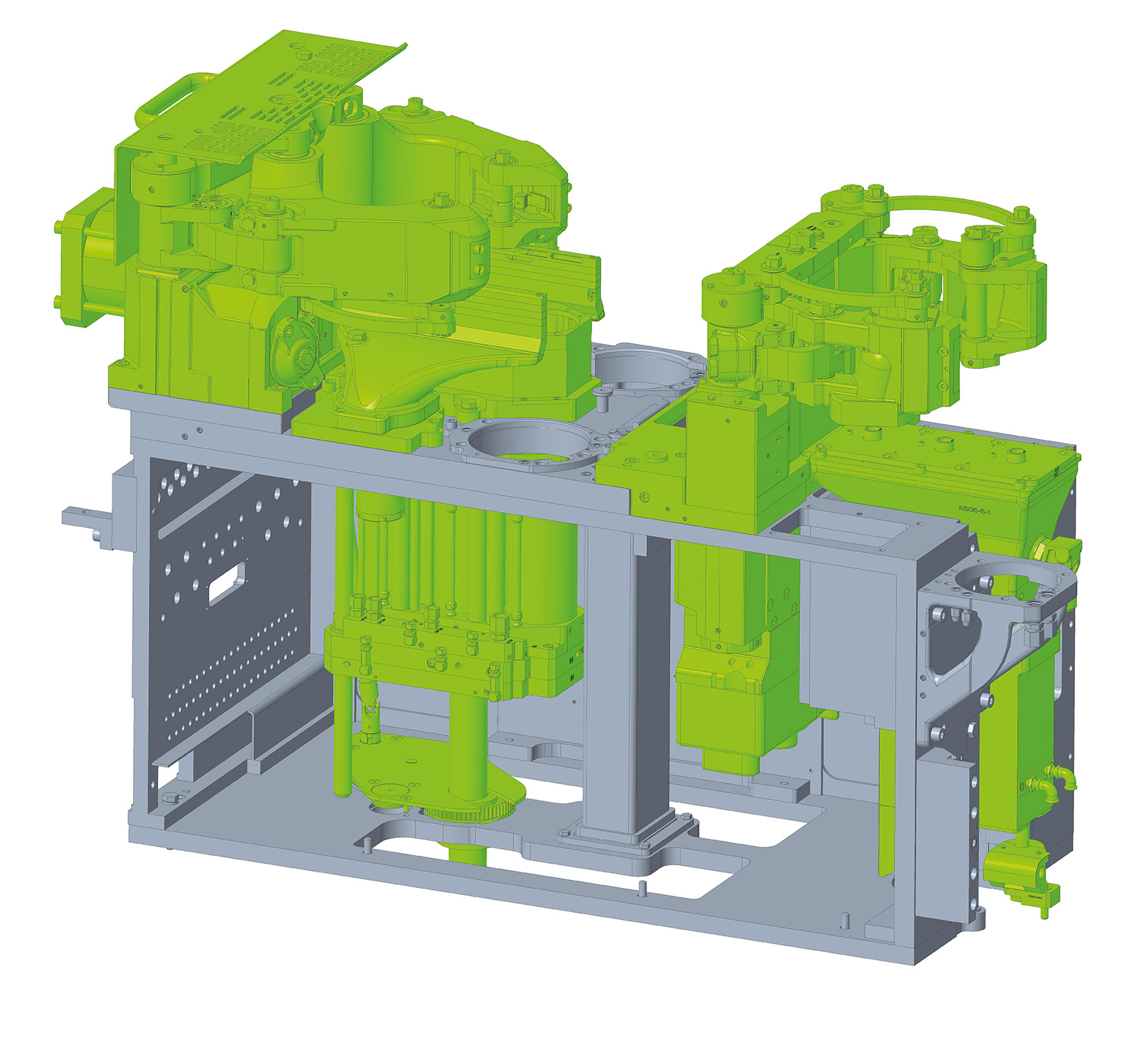

Top mounted E-MOC is

  • More Efficient
  • More Flexible

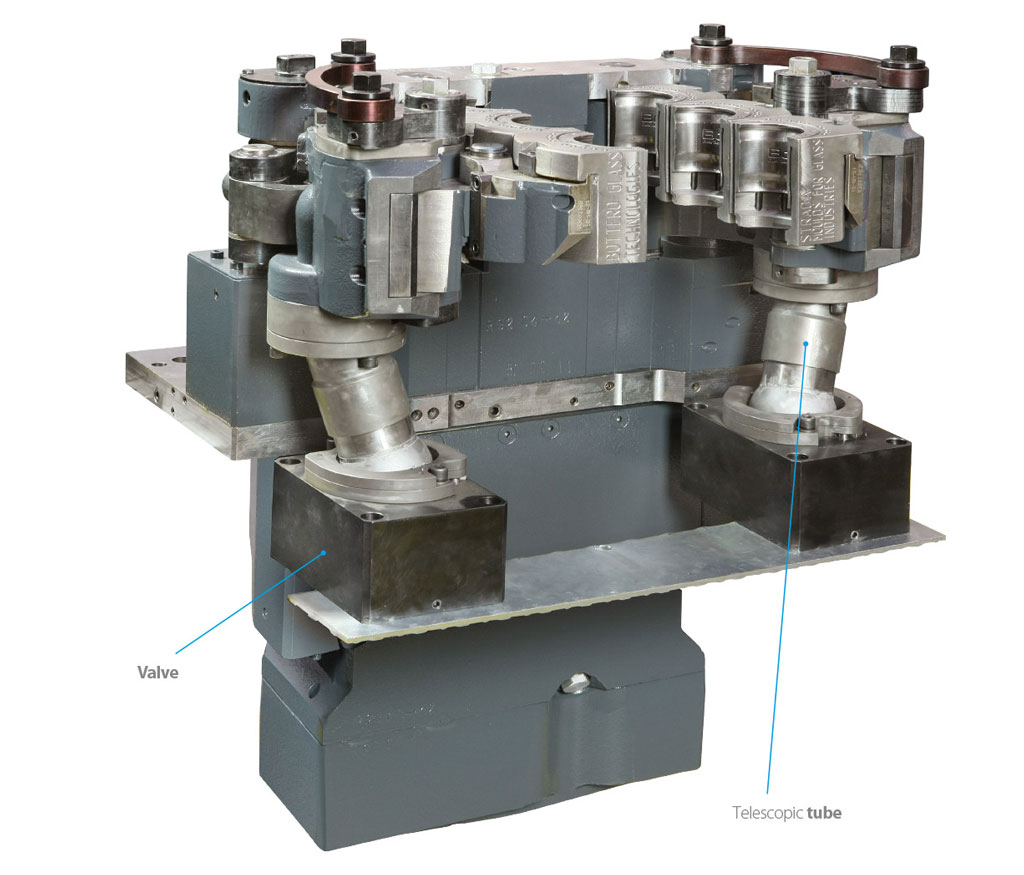

With all top mounted mechanisms section box is completely empty. Longer stroke plunger can be installed. Mechanism maintenance can be done in workshop, while machine is running.

Cooling advantages

Blank cooling

E-Moc axial cooling

  • Efficient Cooling from mold center
  • Better horizontal temperature homogeneity
  • Easy vertical temperature profile adjustment with PLUGS
  • FULL 360° cooling time
  • LOW fan pressure and mass flow requirement

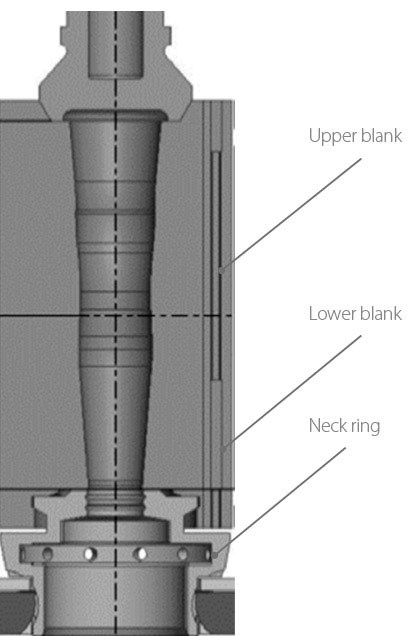

  • Indipendent blank and neck ring cooling

Blank cooling

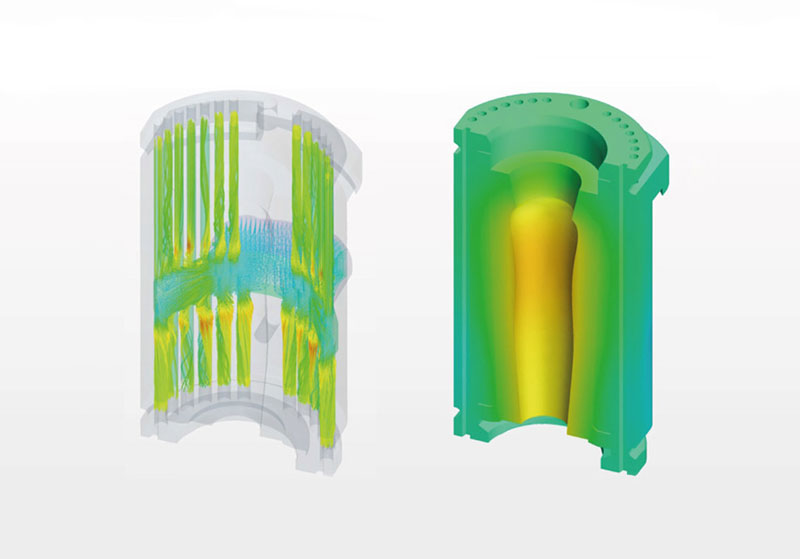

CFD airflow velocity controls mold temperature profile

The cooling Adjustment:

  • Top & Bottom number of holes
  • The diameter of holes
  • The circumferential distribution


Mold Cooling

E-Moc axial cooling

  • Efficient Cooling from mold center
  • Better horizontal temperature homogeneity
  • Easy vertical temperature profile adjustment with PLUGS
  • FULL 360° cooling time
  • LOW fan pressure and mass flow requirement
  • Indipendent blank and neck ring cooling
  • No air Leakage inside mold cavity

Neck ring cooling

E-Moc neck-ring cooling

  • Adjustable for all invert position
  • Efficient for all cavities
